S32K388EVB-Q289 Evaluation Board for Automotive General Purpose

S32K388EVB-Q289 正常供应

滚动图片以放大

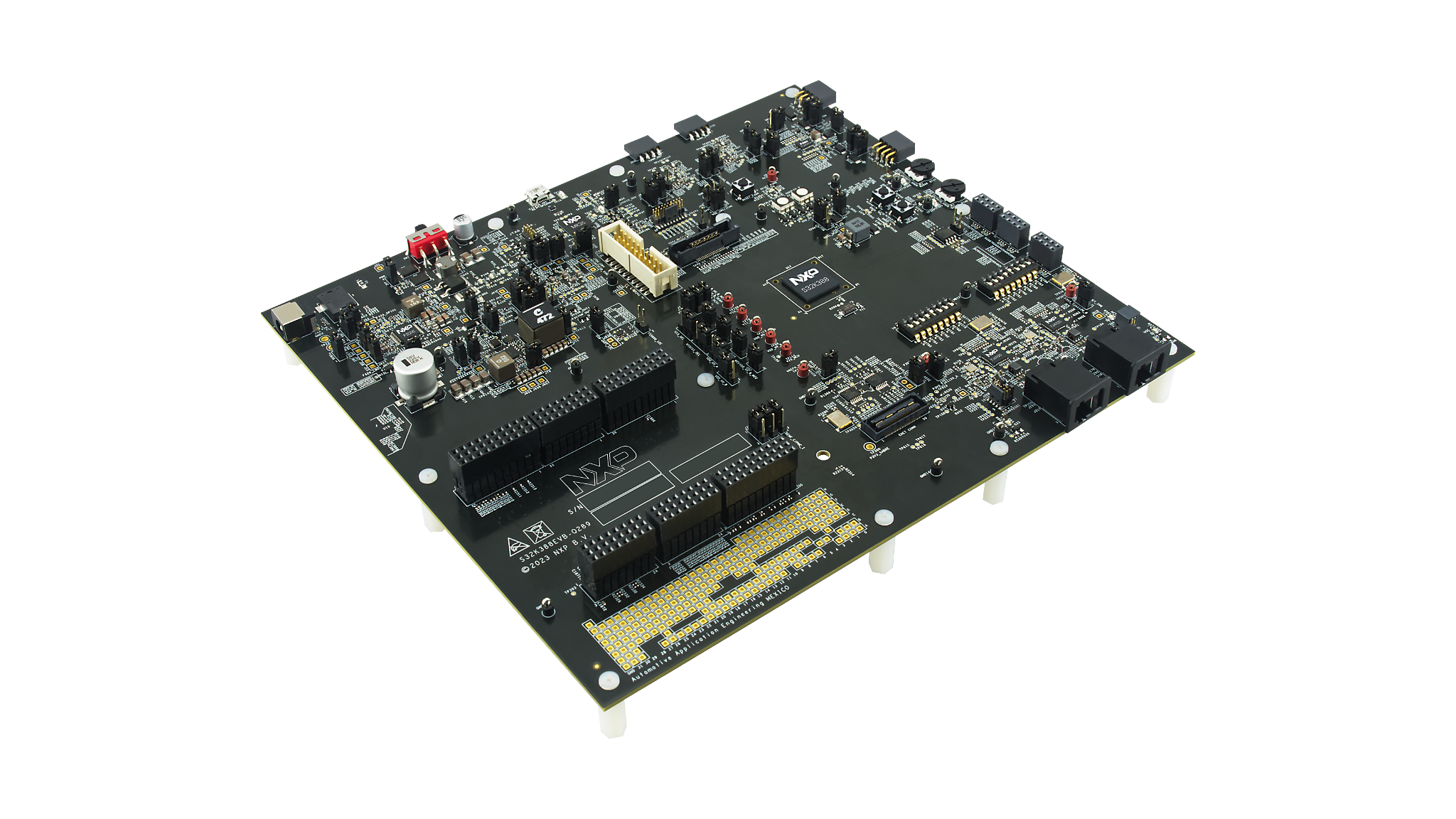

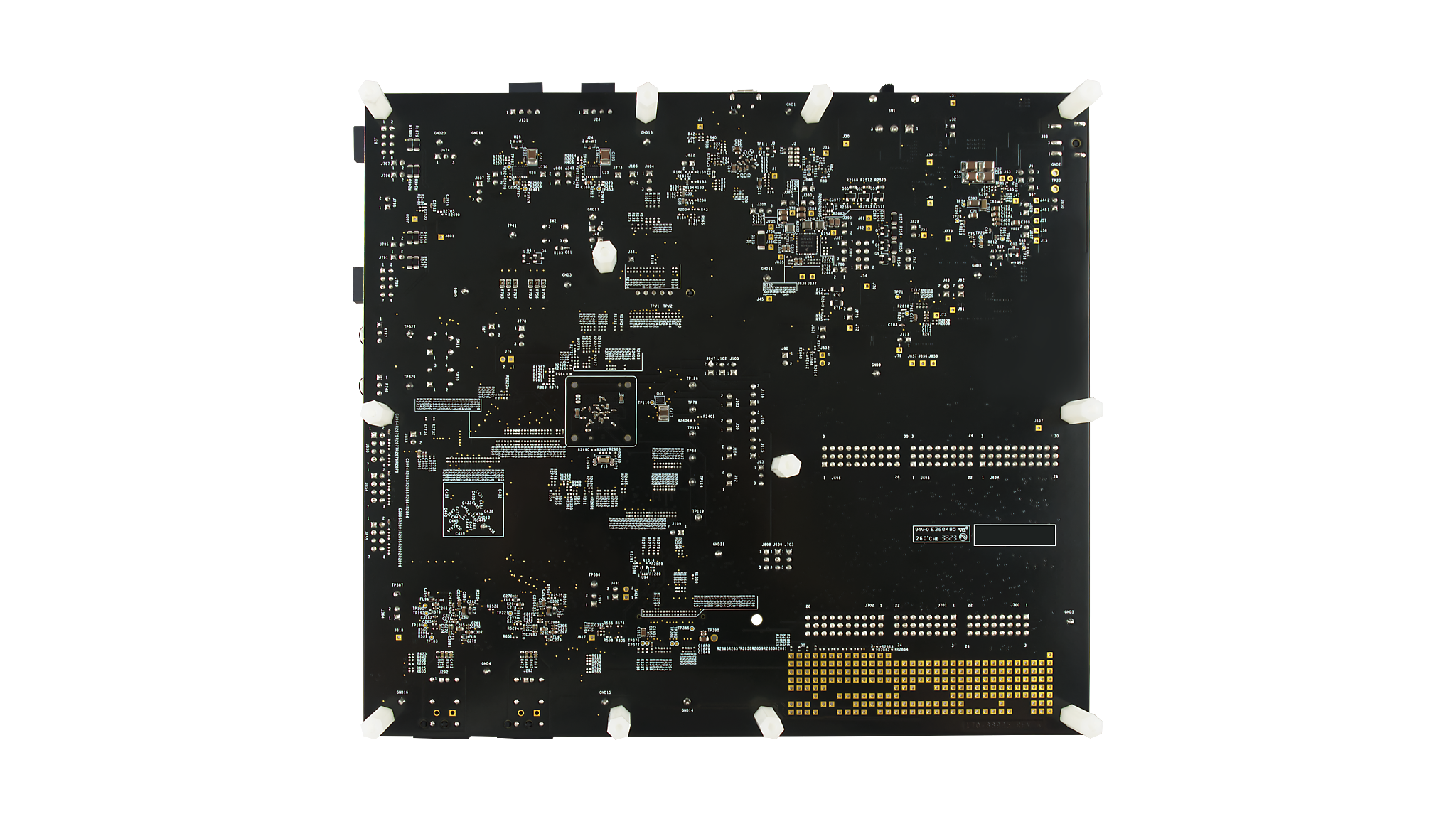

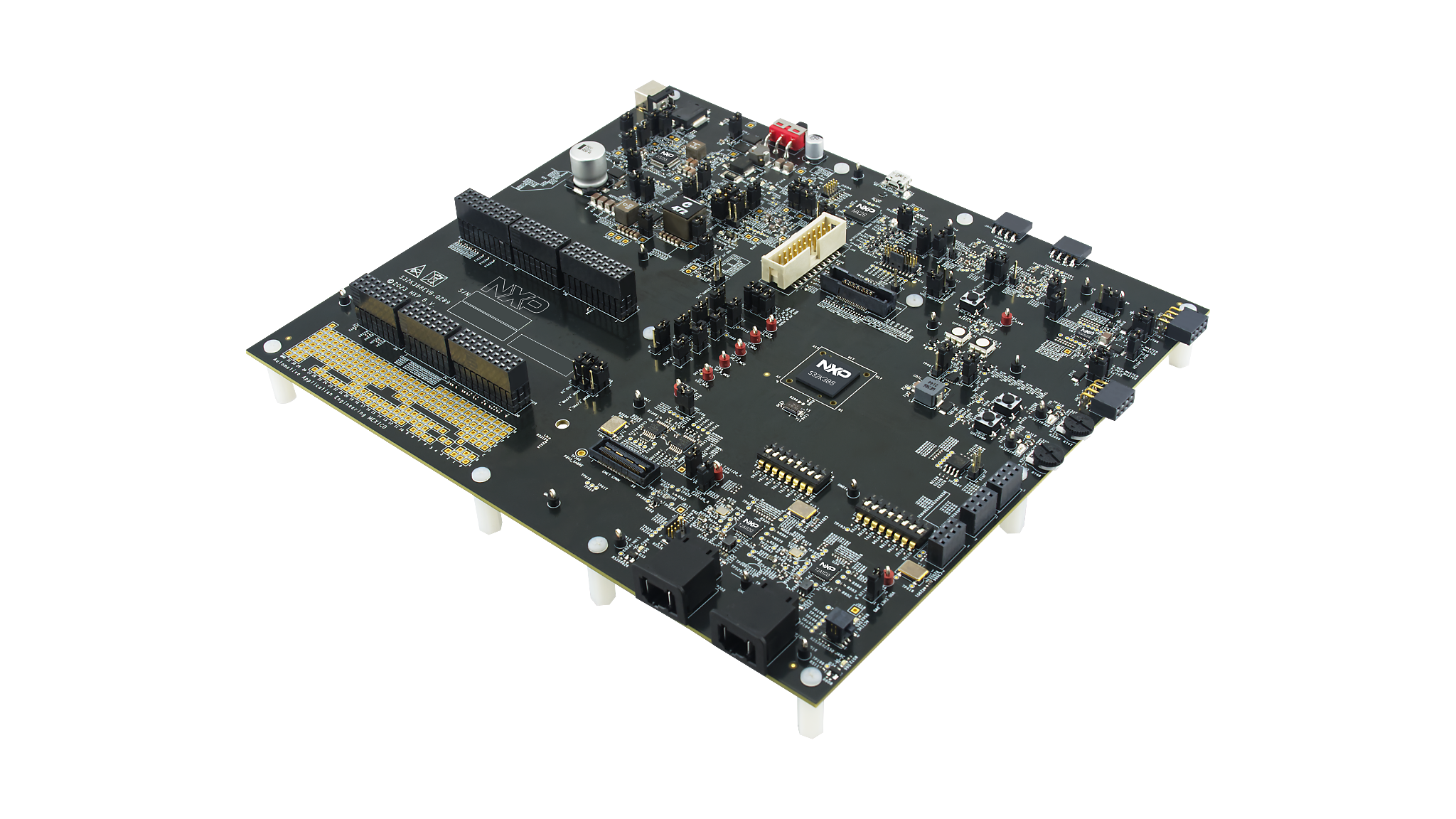

The S32K388EVB-Q289 is an evaluation and development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm®Cortex®-M7 S32K3 MCU in a 289 MAPBGA package, the S32K388EVB-Q289 offers a multicore mode, HSE_B security engine, OTA support, advanced connectivity, 2 x 1 Gbit Ethernet ports and low power.

The S32K388EVB-Q289 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping.

框图

S32K388EVB-Q289 Features

S32K388EVB-Q289
获取框图PDF

支持的器件

电源管理

安全SBC

  • FS26: 功能安全系统基础芯片，低功耗，面向ASIL D系统
  • FS5600: 汽车双降压稳压器和控制器，带有电压监测器和看门狗定时器

PMIC

  • PF5020: Multi-Channel (5) PMIC for Automotive Applications – 4 High Power and 1 Low Power, Fit for ASIL B Safety Level

处理器和微控制器

S32K汽车通用MCU

  • S32K3: S32K3汽车通用微控制器

K2x / KS2x USB

  • K26_180: Kinetis® K26-180 MHz，双高速和全速USB，2MB闪存微控制器(MCU)，基于ARM® Cortex®-M4内核

接口

安全的CAN收发器

  • TJA1153: 具有睡眠模式的安全HS-CAN收发器

汽车LIN解决方案

  • TJA1024HG: 4通道LIN 2.2A/SAE J2602收发器

汽车以太网PHY

  • TJA1120: TJA1120，符合ASIL B标准的汽车以太网1000BASE-T1 PHY收发器

Features

Hardware Interface

  • Power supply switch
  • 2x User RGB LED
  • 2x user push-buttons
  • 2x ADC rotatory potentiometer
  • I/O matrix
  • USB connector for OpenSDA
  • SABRE connector to ethernet interface
  • 2x 10/100/1000 Gigabit Ethernet INTERFACE
  • 2x CAN/CANFD
  • 4x LIN
  • 3x LPSPI 20 Mbps INTERFACE
  • JTAG Connector

Software Features

  • Free of charge Real-Time Drivers(RTD) for AUTOSAR® and non-AUTOSAR use and ASIL D compliant
  • Free of charge S32 Design Studio IDE (Eclipse, GCC and debugger) and S32 Config Tool (pins, clocks, peripherals) with third-party compilers and debuggers
  • Free-of-charge Real-Time Drivers (RTD) for AUTOSAR® and non-AUTOSAR use and ASIL D compliant
  • Configuration tools for both AUTOSAR and non-AUTOSAR users
  • Free of charge security firmware: SHE+ compliant NXP supplied, designed for ISO 21434
  • S32 Safety Software Framework (SAF): Six fault detection and reaction libraries
  • Free of Charge Safety Peripheral Drivers (SPD)
  • Structural Core Self-Test (SCST) Library
  • Inter-Platform Communication Framework (IPCF): Middleware for multicore, multi-OS communication in single and multichip systems
  • Free of charge Model-Based Design Toolbox (MBDT) for MATLAB®: NXP supplied plug-in for Simulink® environment

Compatibility

  • Arduino UNO pin-out compatible with expansion "shield" support

Interfaces

  • On-board CAN-FD
  • LIN
  • 2x 1 Gbit Ethernet
  • USB to UART
  • SPI
